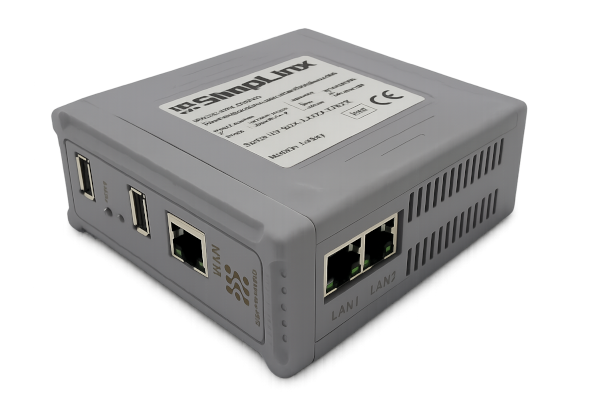

SMX-GTW10
Industrial firewall and gateway — connect OT and office networks, control device access with virtual IPs, and enforce strict OT/IT traffic rules.
The SMX-GTW10 is an industrial firewall and gateway that bridges networks with different IP subnets and enforces strict, per-device access control between them. Virtual IP mapping lets you reach any field device from the office network without touching its IP configuration — the gateway handles the routing transparently.
Bidirectional access lists define exactly which WAN address can reach which LAN device, and in which direction. Traffic not explicitly permitted is blocked by default by the stateful firewall.
Key Features
- Virtual IP mapping — reach field devices via WAN-side virtual addresses without changing their configuration
- Port forwarding — map any gateway port to any field device port (TCP, UDP, or ALL)
- WAN→LAN access control — whitelist which external IPs can reach which field devices
- LAN→WAN access control — control which field devices can initiate outbound connections
- Multi-subnet routing — route specific IPs or ranges between LAN and WAN interfaces
- Built-in L2 Ethernet switch — 2 LAN ports share the same subnet; devices communicate directly
- Stateful firewall with real-time blocked packet monitor
- Wi-Fi hotspot via SMX-N1559 — wireless access to configuration and LAN devices
- Internet via WAN port or USB phone tethering
- Configuration import/export via USB disk or web UI
A factory installs the SMX-GTW10 between the office LAN and the production network. A virtual IP on the office side maps to each PLC — the OEM engineer reaches their machine via the virtual address, never seeing other devices on the floor. The Access List ensures only the authorised engineer's IP has that path.
Virtual IP & Port Mapping
Access any field device from the office network without changing its IP configuration. The gateway creates a virtual address on the WAN side that maps transparently to the device's real LAN address.
- Define virtual WAN IPs that map to specific LAN device addresses
- Forward any WAN port to any field device port (TCP, UDP, or both)
- Restrict access per virtual IP or port — per-rule Allowed IPs list
- No configuration changes required on target PLCs, drives, or panels
Bidirectional Access Control
Define exactly which devices can talk to which — in both directions. WAN→LAN rules whitelist which external addresses can reach field devices. LAN→WAN rules control which field devices can initiate outbound connections.
- WAN→LAN: grant specific external IPs access to specific LAN devices
- LAN→WAN: permit specific field devices to reach specific external addresses
- Per-rule protocol selection: TCP, UDP, or ALL
- IP address, subnet (/24 notation), or IP range supported per rule
Firewall & Routing
Traffic not explicitly permitted is blocked by default. The built-in firewall logs every blocked packet in real time. Custom routes direct specific IPs or subnets to either the LAN or WAN interface.
- Stateful firewall — default-deny; only permitted traffic passes
- Real-time blocked packet monitor: source, destination, protocol, port, MAC
- Route Table: forward individual IPs, subnets, or ranges to LAN or WAN
- Built-in L2 switch: 2 LAN ports share the same subnet, devices communicate directly
